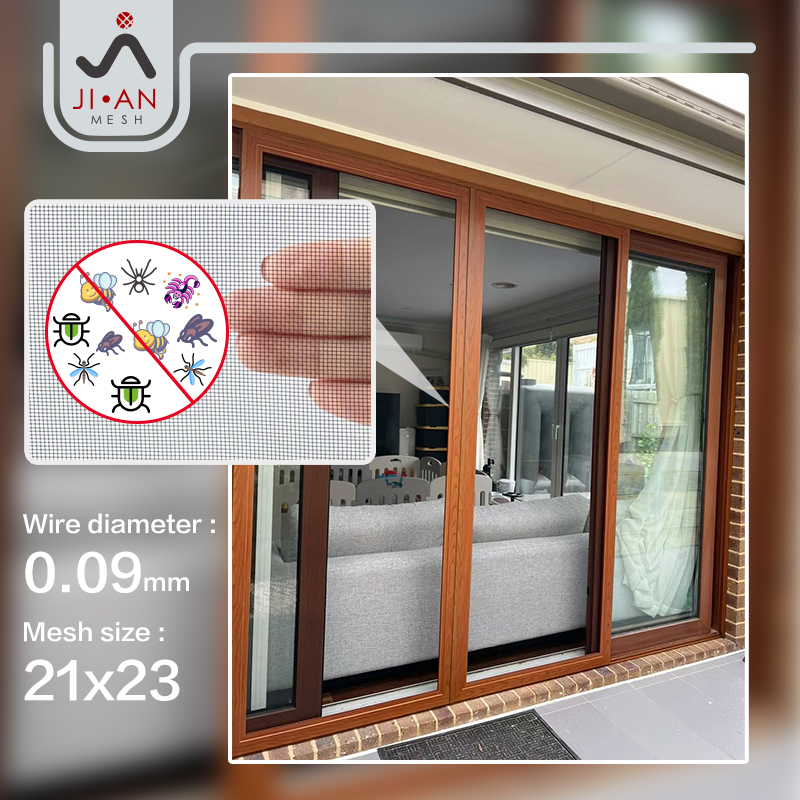

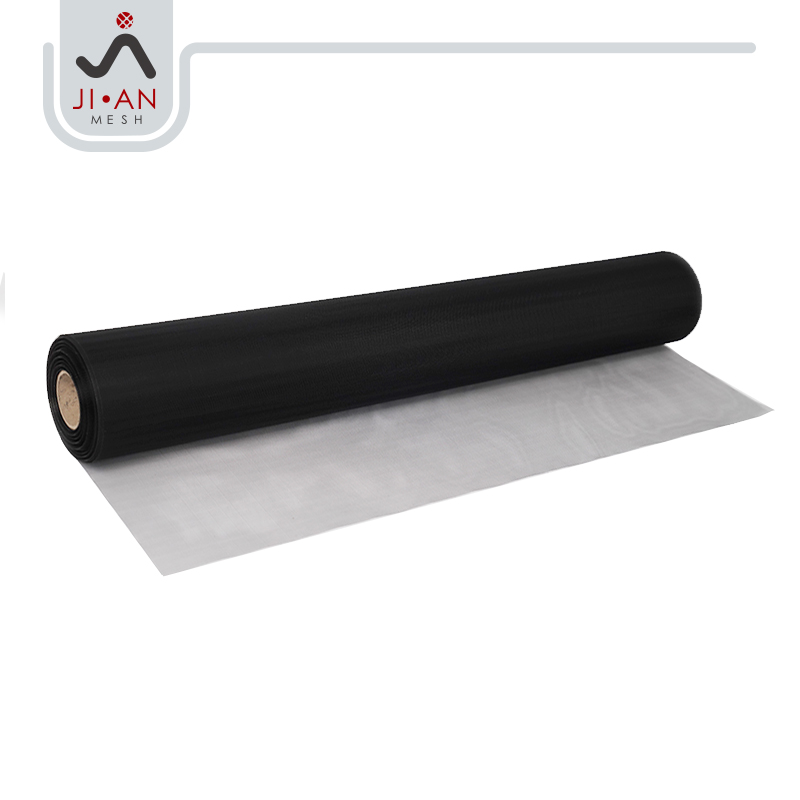

FlexInvis Stainless Steel Invisible Screen Mesh is a ultra-fine 0.09 mm 304 stainless steel mesh specially developed for retractable and roll-up screen systems. With a 23 × 21 mesh structure, it delivers about 77.2% ventilation and 84.1% light transmittance, creating a nearly invisible viewing effect.
Compared with fiberglass and polyester insect screens, FlexInvis offers higher tensile strength (1350–1550 MPa), lower elongation (≥15%), better dimensional stability and longer service life, making it ideal for premium retractable invisible screens and high-end window & door systems.
| Item | Specification |
|---|---|
| Product Name | FlexInvis Stainless Steel Invisible Screen Mesh |
| Material | 304 Stainless steel |
| Process | Wire drawing, plain weaving |
| Mesh Count | 23 × 21 mesh |
| Warp Wire Diameter | 0.09 mm |
| Weft Wire Diameter | 0.09 mm |
| Fabric Weight | 0.15 kg/m² |
| Elongation | ≥ 15 % |
| Coating | Composite resin |
| Tensile Strength | 1350–1550 MPa |
| Coating Process | Electrostatic spraying |
| Coating Thickness | Approx. 25 μm |
| Curing Conditions | 200 °C / 2 m/min, flat furnace |
| Color | Black |
| Packing | Carton |
| Ventilation Rate | 77.2 % |
| Open Area Ratio | 77.2 % |
| Aperture Size | 1.01 mm |
| Light Transmittance | 84.1 % |
| UV Blocking Rate | 68.3 % |
| IR Blocking Rate | 66.7 % |
