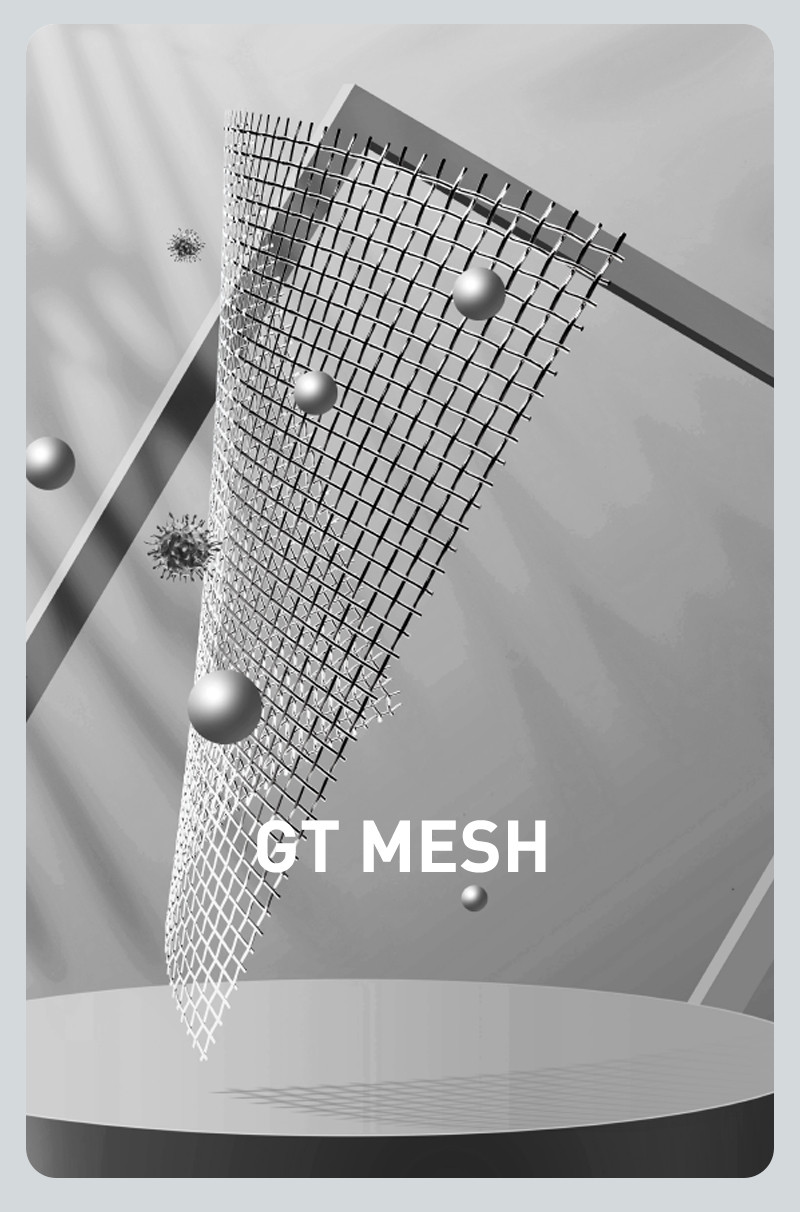

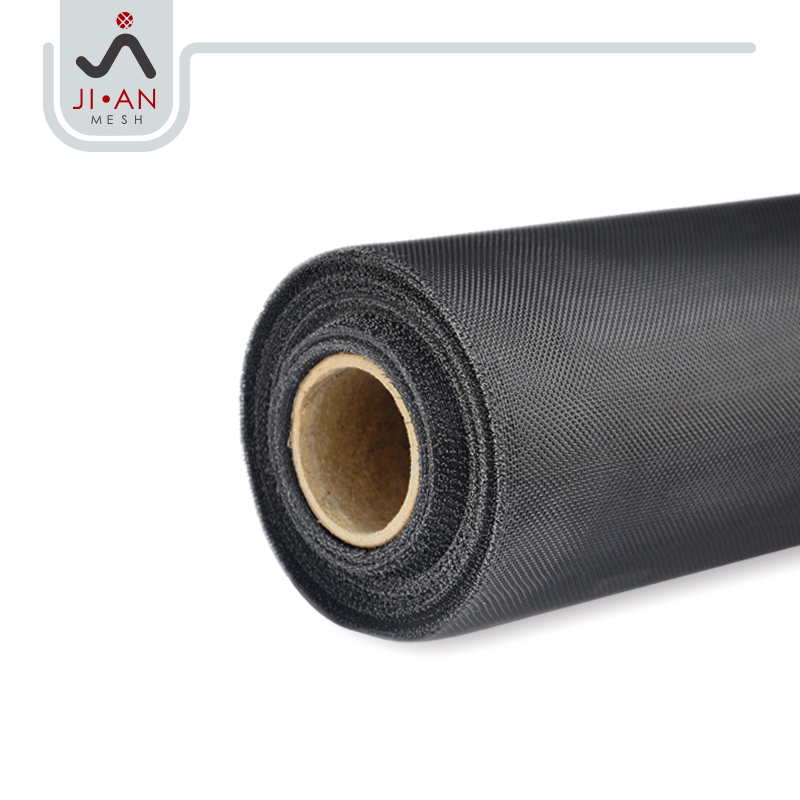

Invisible GT Mesh is a high-transparency 304 stainless steel insect screen designed for coastal and high-humidity environments. Made from national-standard 06Cr19Ni10 stainless steel in a 20 × 20 mesh with 0.175 mm wire, it offers 74% ventilation and 78% light transmittance while keeping insects out.

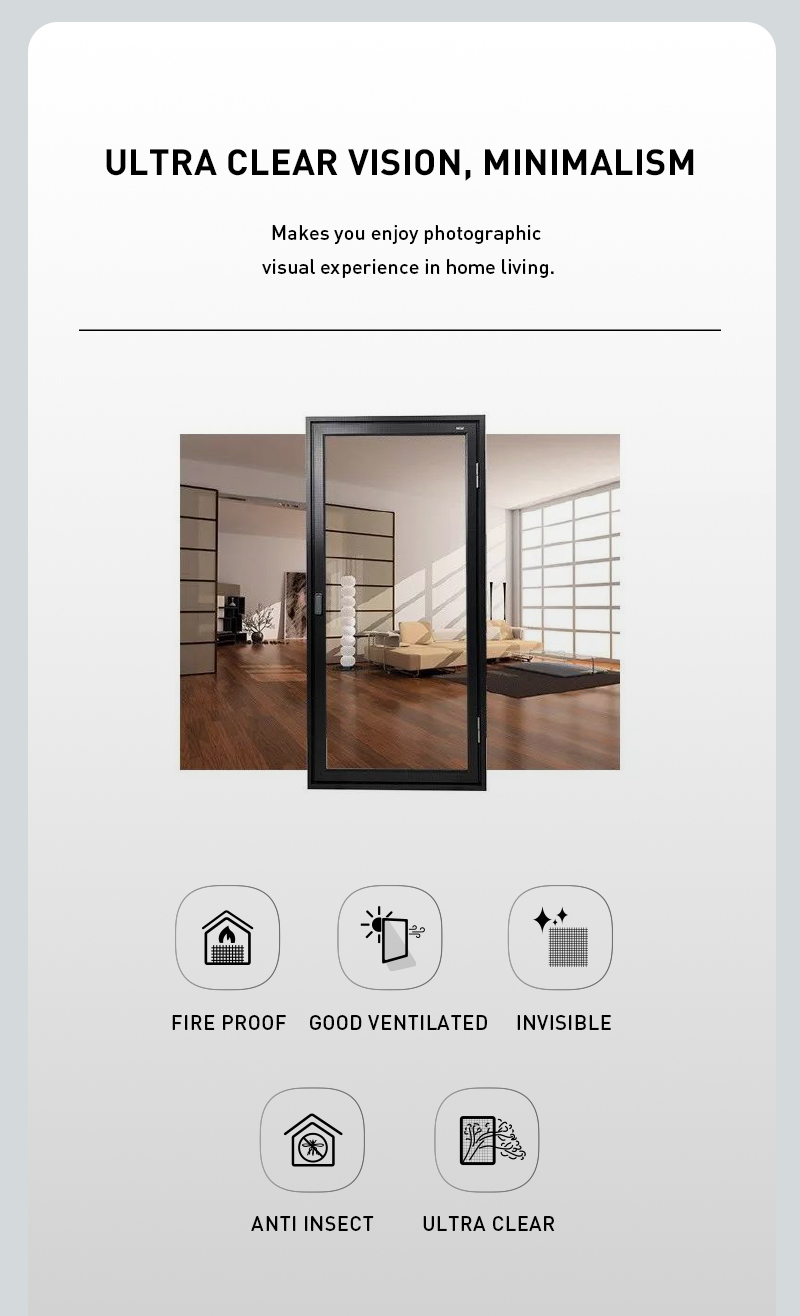

Unlike traditional powder-coated mesh, Invisible GT Mesh uses a polymer anti-rust and weather-resistant coating applied before weaving, so every wire is fully protected. The unfixed warp and weft structure allows local tension adjustment, making it ideal for large screen doors that must stay flat and visually “invisible”.
| Item | Specification |
|---|---|
| Product Name | Invisible GT Mesh |
| Material | 304 stainless steel (06Cr19Ni10) |

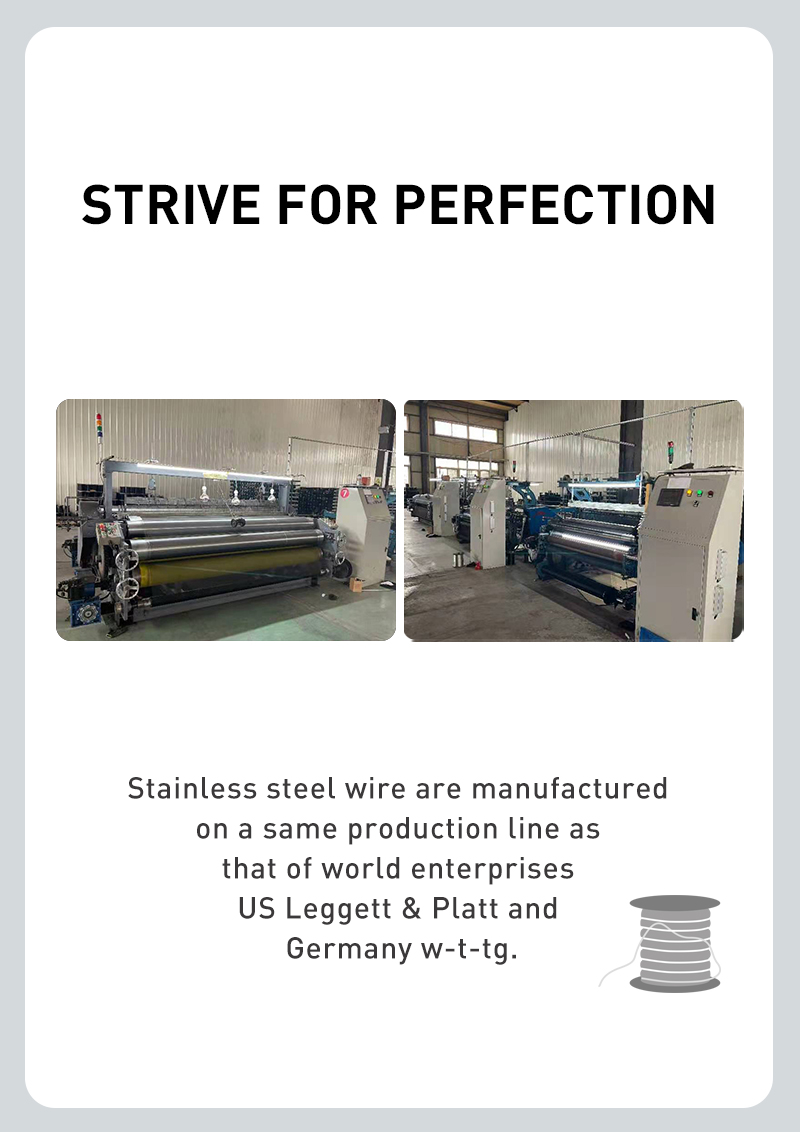

| Process | Wire drawing, plain weaving |

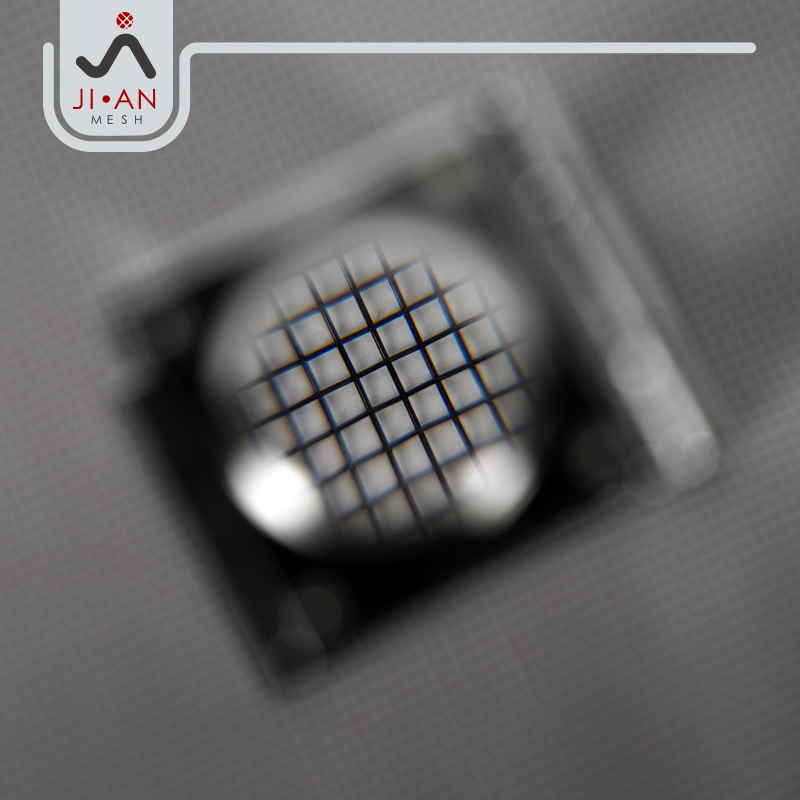

| Mesh Count | 20 × 20 mesh |
| Warp Wire Diameter | 0.175 mm (+0.03 / -0.03 mm) |
| Weft Wire Diameter | 0.175 mm (+0.03 / -0.03 mm) |
| Fabric Weight | 0.32 kg/m² |
| Elongation | 45–55 % |

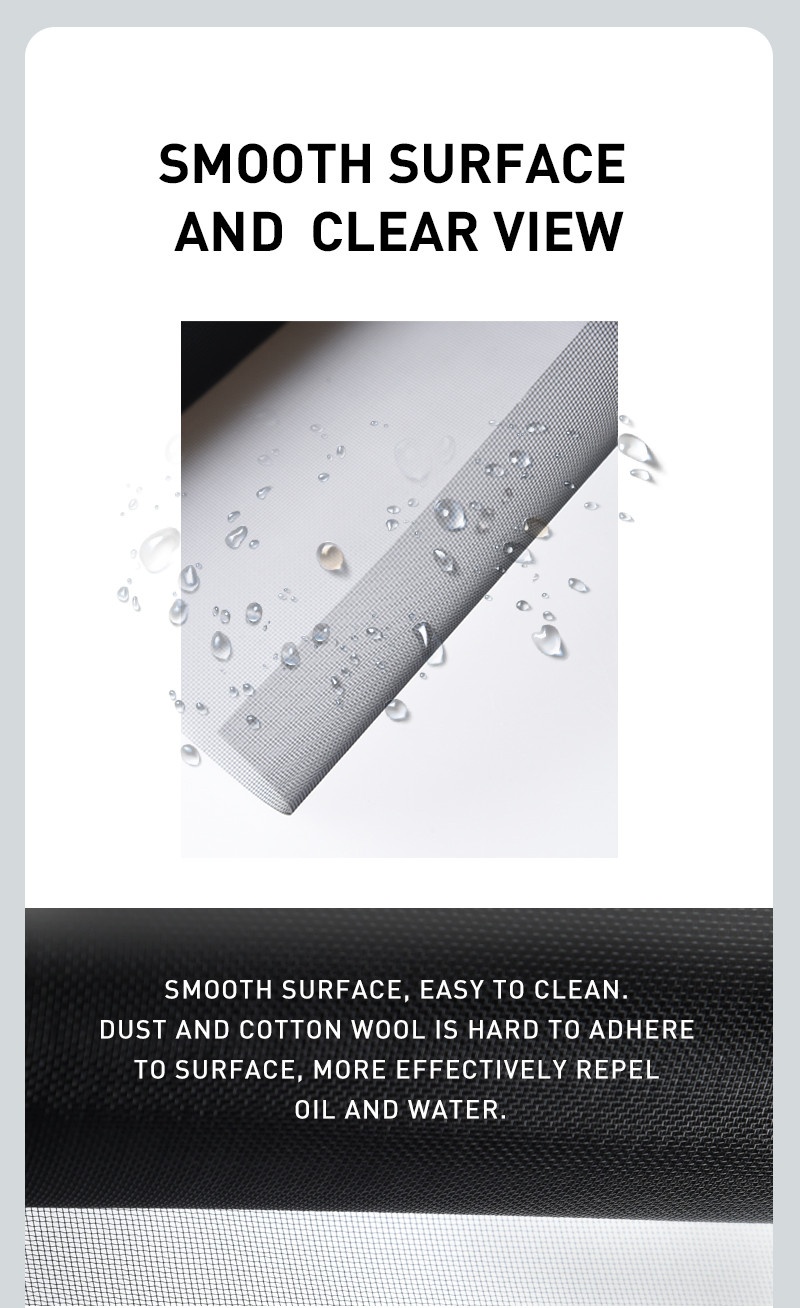

| Coating | Yes – Polymer anti-rust & weather-resistant layer |

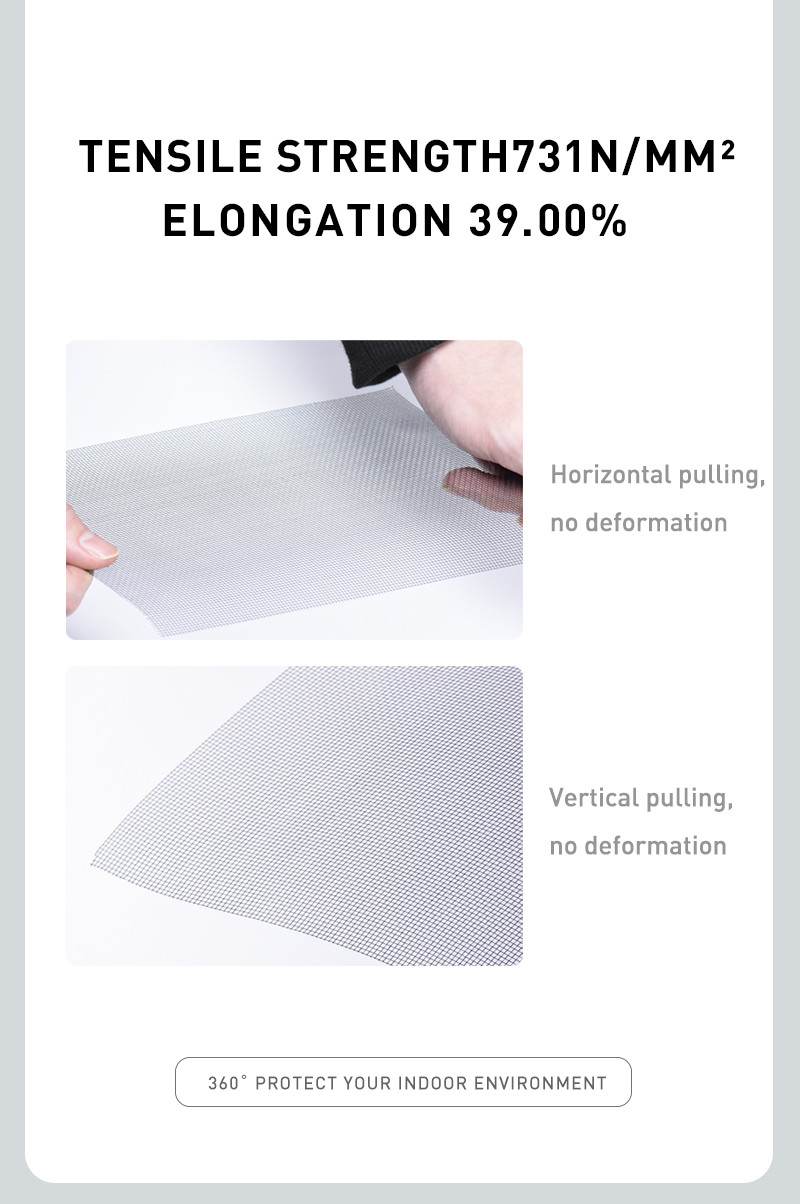

| Tensile Strength | 700–740 MPa |
| Coating Process | Polymer coating |
| Coating Thickness | Approx. 35 μm |
| Curing Conditions | 420 °C / 70 m/min |
| Color | Black |
| Packing | Carton |
| Ventilation Rate | 74 % |
| Open Area Ratio | 74 % |
| Aperture Size | 1095 μm |
| Light Transmittance | 78 % |
| UV Blocking Rate | 31 % |
| IR Blocking Rate | 26 % |
