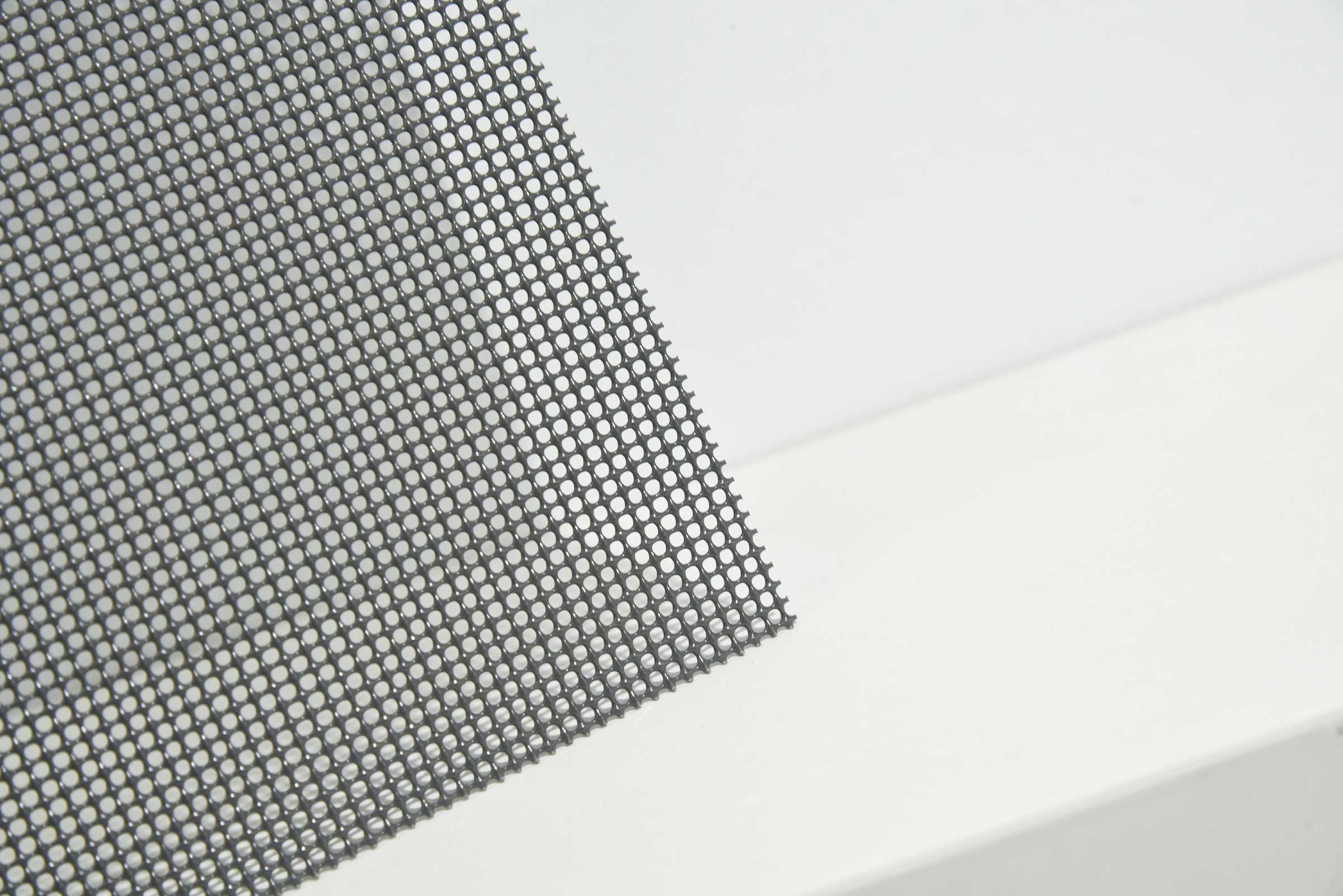

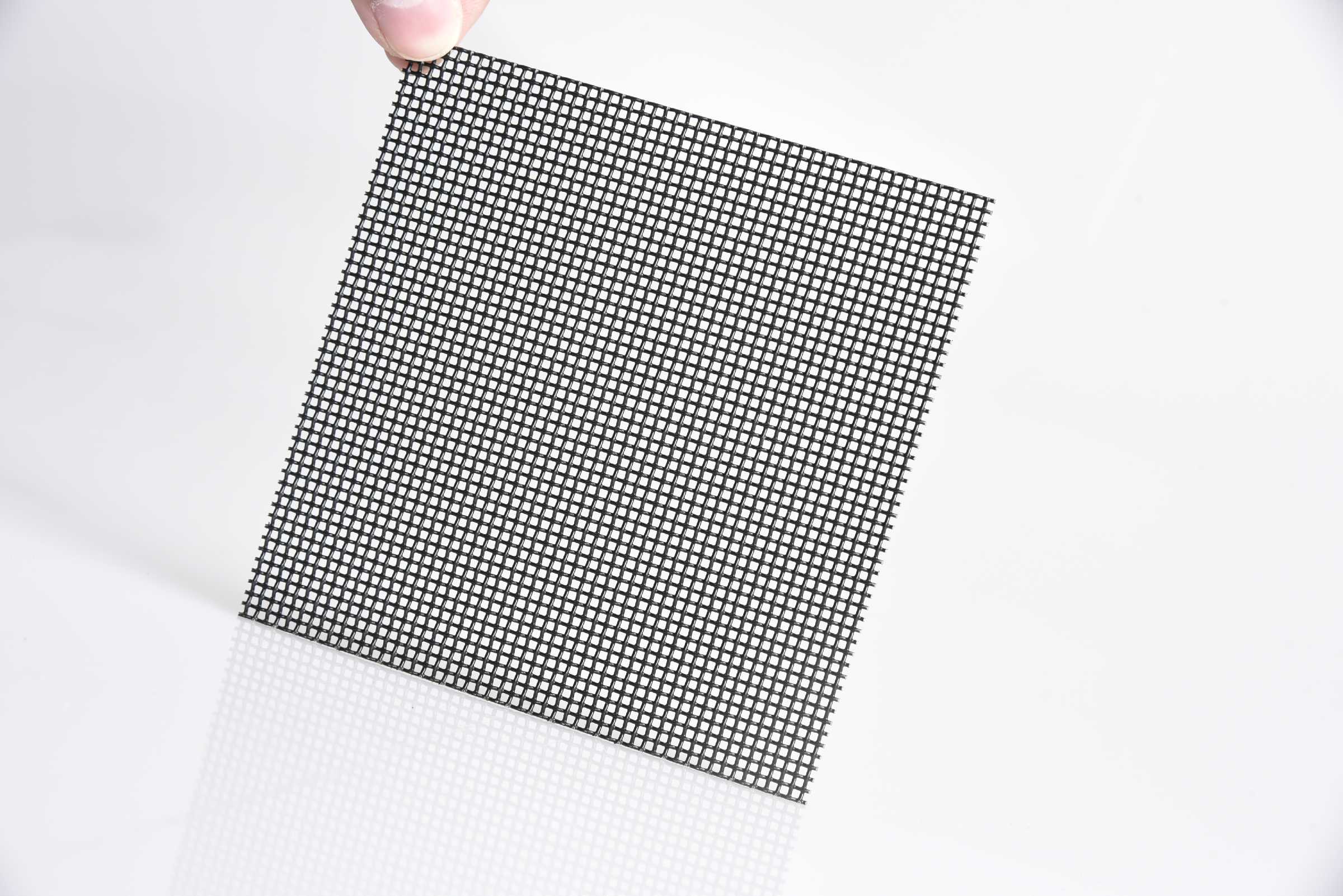

Product name: security mesh
Brand name: JIAN MESH
Product material: National standard 304/316L
Material类型(材质): 304不锈钢 304 Stainless steel

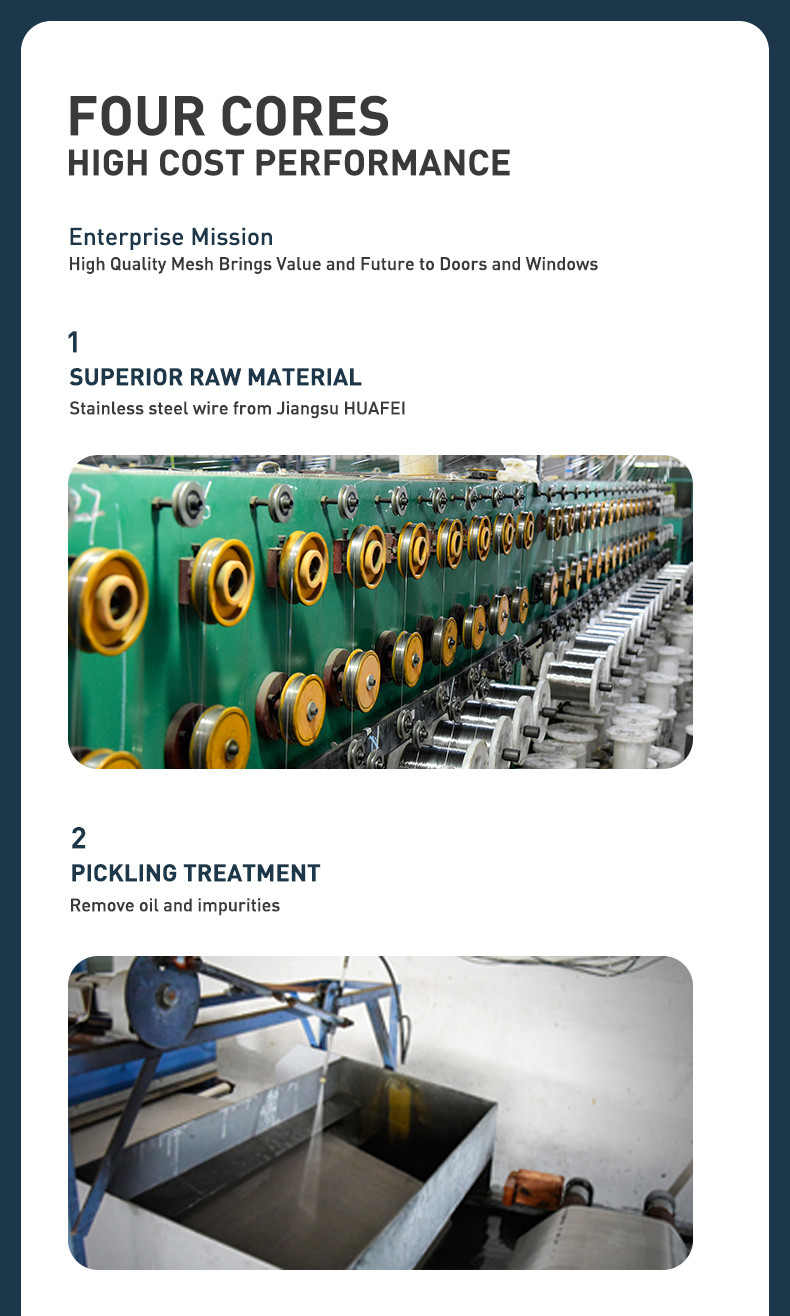

Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：18目 Mesh
Weft thread count 纬线密度：18目 Mesh
Warp wire diameter 经线丝径：0.33mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.33mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：1.05kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：50%
Open area ratio开孔率：50%
Aperture size孔径：1100μm
Light transmittance透光率：56%
Ultraviolet blocking rate紫外线阻隔率：55%
Infrared blocking rate红外线阻隔率：50%
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：15目 Mesh
Weft thread count 纬线密度：15目 Mesh
Warp wire diameter 经线丝径：0.41mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.41mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：1.27kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：41%
Open area ratio开孔率：41%
Aperture size孔径：1600μm
Light transmittance透光率：51%
Ultraviolet blocking rate紫外线阻隔率：61%
Infrared blocking rate红外线阻隔率：60%
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：13目 Mesh
Weft thread count 纬线密度：13目 Mesh
Warp wire diameter 经线丝径：0.45mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.45mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：1.45kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：40%
Open area ratio开孔率：40%
Aperture size孔径：1180μm
Light transmittance透光率：51%
Ultraviolet blocking rate紫外线阻隔率：60%
Infrared blocking rate红外线阻隔率：54%
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：13目 Mesh
Weft thread count 纬线密度：13目 Mesh
Warp wire diameter 经线丝径：0.56mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.56mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：2.03kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：36%
Open area ratio开孔率：36%
Aperture size孔径：1220μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外线阻隔率：63%
Infrared blocking rate红外线阻隔率：61%
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：12目 Mesh
Weft thread count 纬线密度：11.5目 Mesh
Warp wire diameter 经线丝径：0.63mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.63mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：2.25kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：50μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：43%
Open area ratio开孔率：43%
Aperture size孔径：1450μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外线阻隔率：63%
Infrared blocking rate红外线阻隔率：56%
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：11目 Mesh
Weft thread count 纬线密度：10.5目 Mesh
Warp wire diameter 经线丝径：0.73mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.73mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：2.75kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：50μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：42%
Open area ratio开孔率：42%
Aperture size孔径：1620μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外线阻隔率：64%
Infrared blocking rate红外线阻隔率：58%
Material类型(材质): 304不锈钢 304 Stainless steel
Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：11目 Mesh
Weft thread count 纬线密度：10.5目 Mesh
Warp wire diameter 经线丝径：0.88mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.88mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：3.75kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：50μm
Curing conditions 固化条件：200°C / 5.25m/min 立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：40%
Open area ratio开孔率：40%
Aperture size孔径：1400μm
Light transmittance透光率：37%
Ultraviolet blocking rate紫外线阻隔率：69%
Infrared blocking rate红外线阻隔率：68%
Product Features：

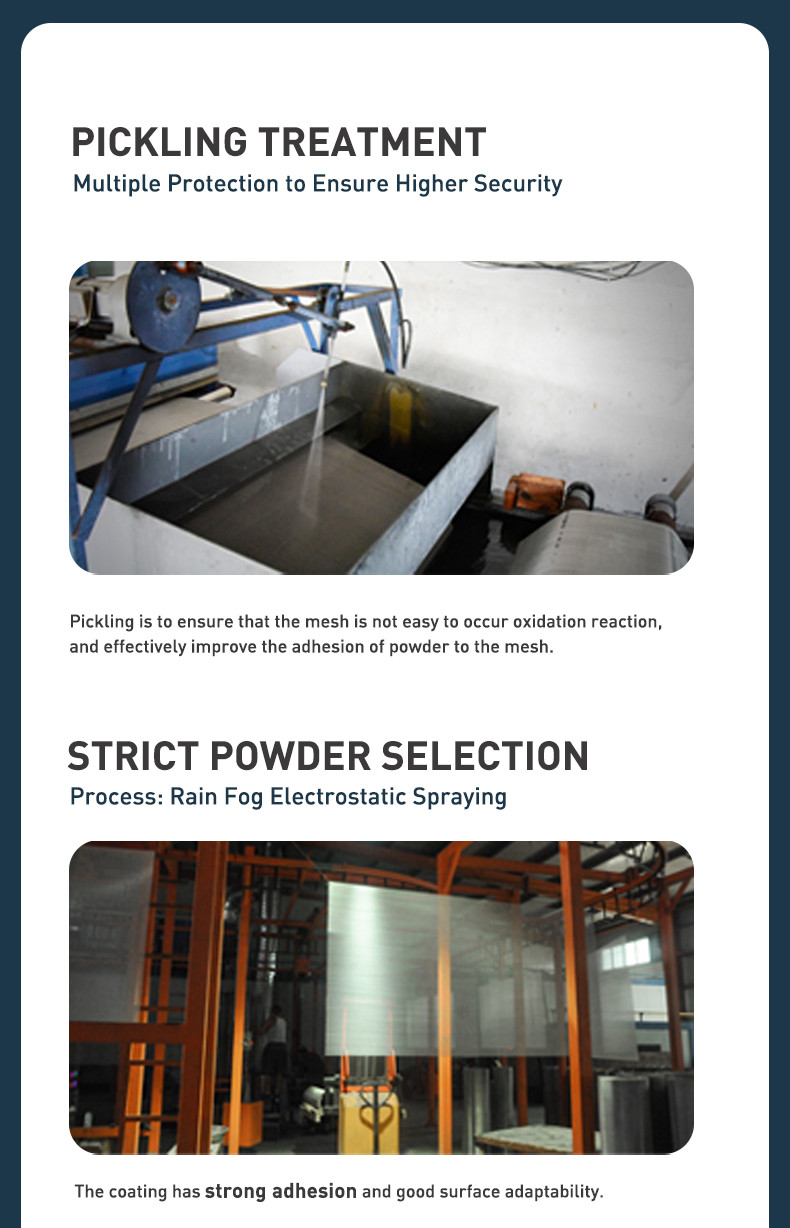

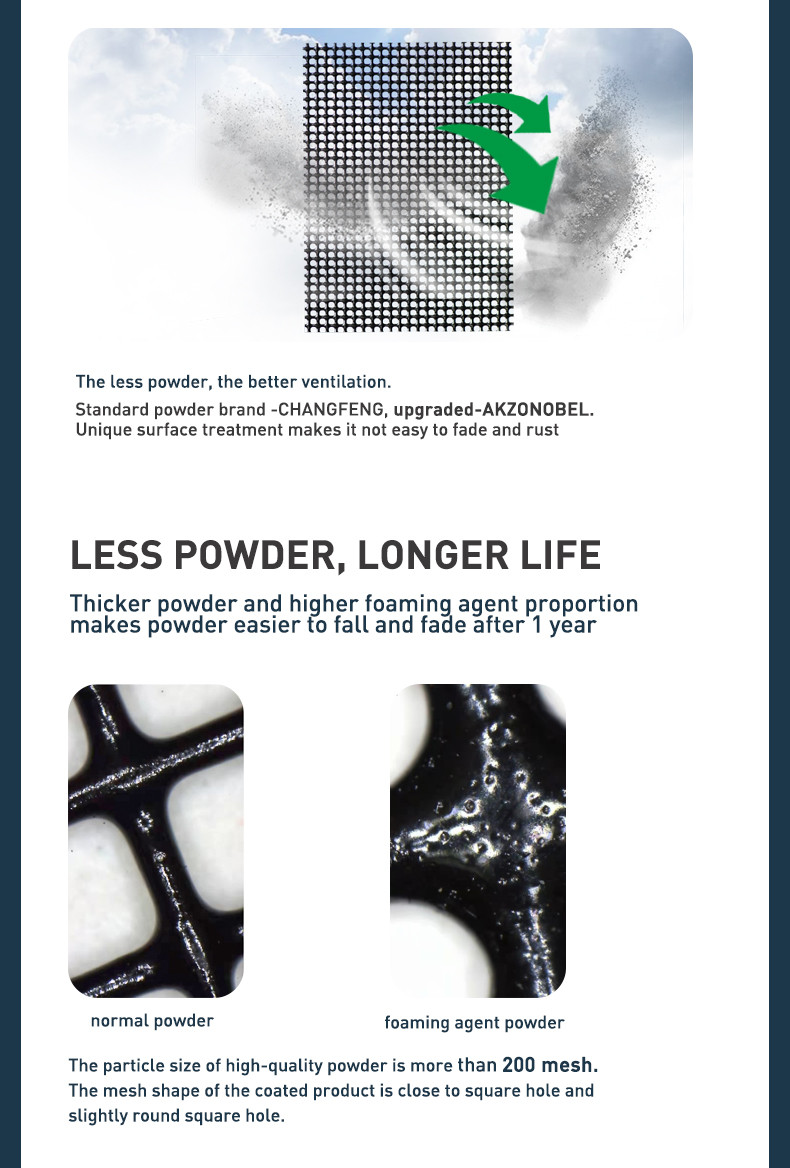

Stainless Steel Security Mesh has been mass-produced and sold in China since 2008, with over 15 years of production experience ensuring product quality. It uses an electrostatic powder coating process that effectively enhances corrosion resistance by covering the wire. However, the powder thickness must be controlled, as too much can round the mesh openings, reducing light transmission and airflow. Thicker wires offer better protection, but larger openings may reduce mosquito prevention. For optimal protection, the wire thickness should be over 0.8mm, as thinner wires provide less security.
