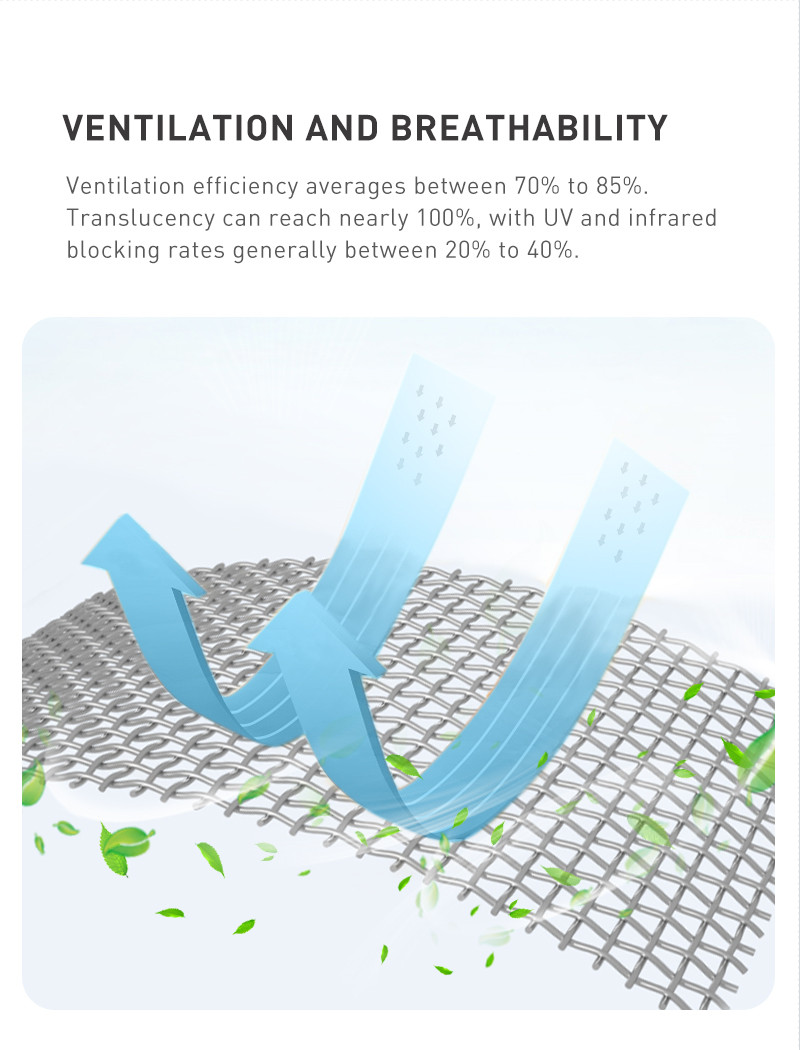

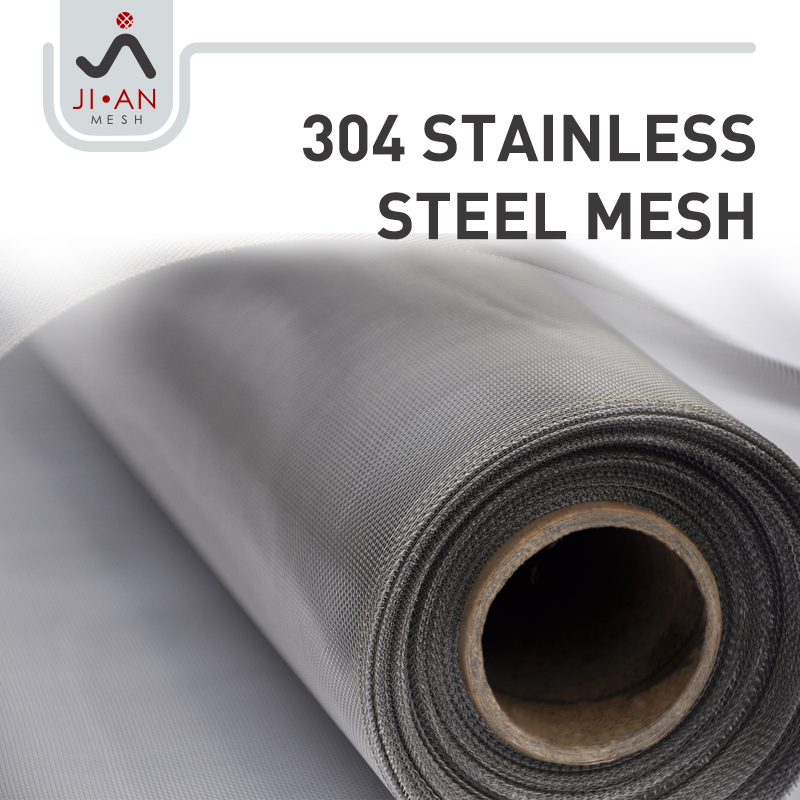

304 Stainless Steel Window Screen Mesh is a durable woven wire insect screen made from high-strength 304 stainless steel. With mesh counts from 18×17 to 22×21, it offers reliable insect and dust protection while maintaining good ventilation and clear visibility. The natural stainless steel finish provides stable corrosion resistance in coastal and high-humidity environments, making it ideal for residential windows and doors, industrial ventilation, warehouse openings and basic filtration where long service life and rust-free performance are required.

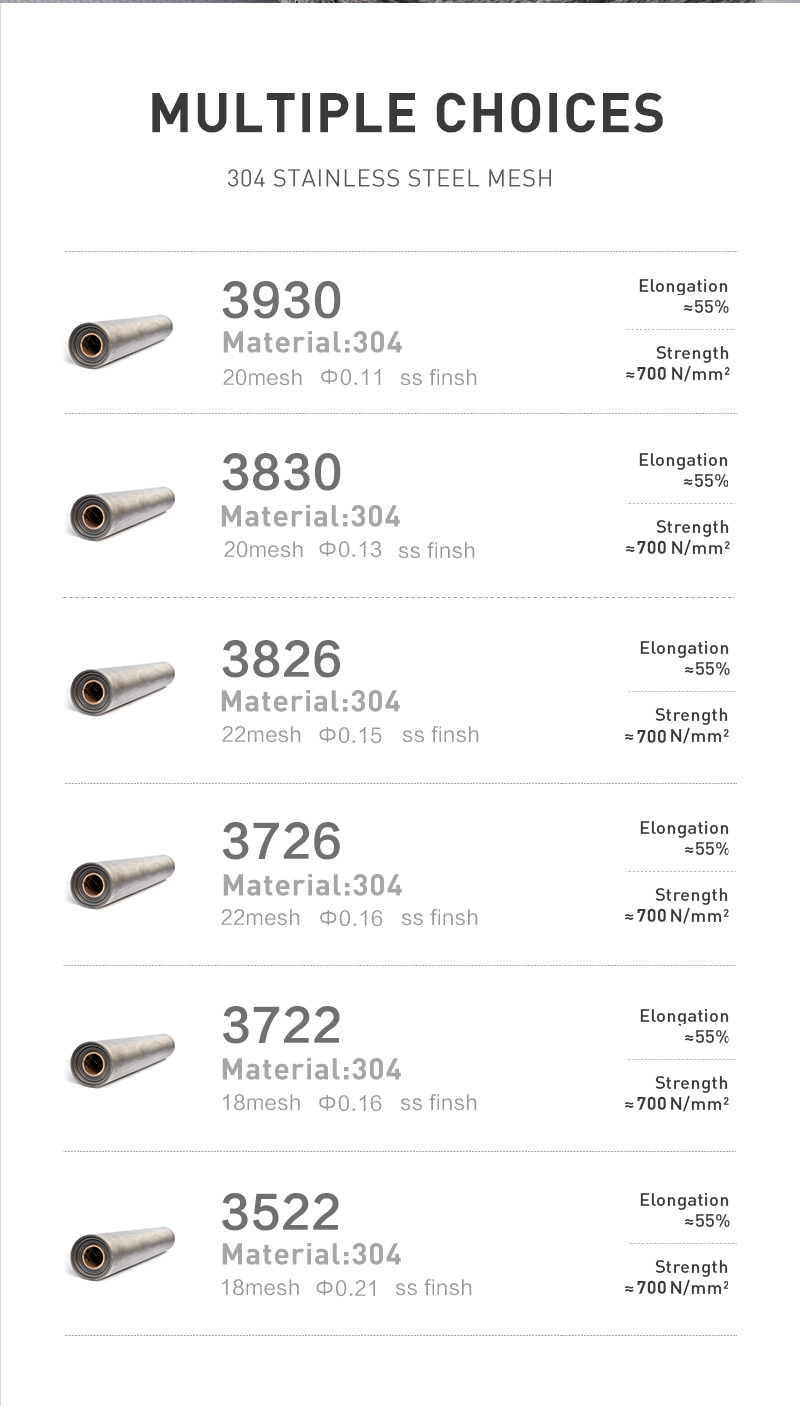

| Model No. | Material | Process | Mesh Count (warp × weft) | Warp Wire Diameter (mm) | Weft Wire Diameter (mm) | Fabric Weight (kg/m²) | Elongation (%) | Coating | Tensile Strength (MPa) | Color | Packing |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3930 | 304 stainless steel | Wire drawing, plain weaving | 20 × 19 | 0.11 (+0.03 / -0.03) | 0.11 (+0.03 / -0.03) | 0.14 | 45–55 | No | 700–740 | Natural | Carton |
| 3830 | 304 stainless steel | Wire drawing, plain weaving | 20 × 19 | 0.13 (+0.03 / -0.03) | 0.13 (+0.03 / -0.03) | 0.17 | 45–55 | No | 700–740 | Natural | Carton |
| 3826 | 304 stainless steel | Wire drawing, plain weaving | 22 × 21 | 0.15 (+0.03 / -0.03) | 0.15 (+0.03 / -0.03) | 0.23 | 45–55 | No | 700–740 | Natural | Carton |
| – | 304 stainless steel | Wire drawing, plain weaving | 22 × 21 | 0.16 (+0.03 / -0.03) | 0.16 (+0.03 / -0.03) | 0.24 | 45–55 | No | 700–740 | Natural | Carton |
| 3625 | 304 stainless steel | Wire drawing, plain weaving | 22 × 21 | 0.18 (+0.03 / -0.03) | 0.18 (+0.03 / -0.03) | 0.33 | 45–55 | No | 700–740 | Natural | Carton |
| 3522 | 304 stainless steel | Wire drawing, plain weaving | 18 × 17 | 0.21 (+0.03 / -0.03) | 0.21 (+0.03 / -0.03) | 0.42 | 45–55 | No | 700–740 | Natural | Carton |
| 3424 | 304 stainless steel | Wire drawing, plain weaving | 20 × 19 | 0.23 (+0.03 / -0.03) | 0.23 (+0.03 / -0.03) | 0.48 | 45–55 | No | 700–740 | Natural | Carton |
