316L Stainless Steel Mesh

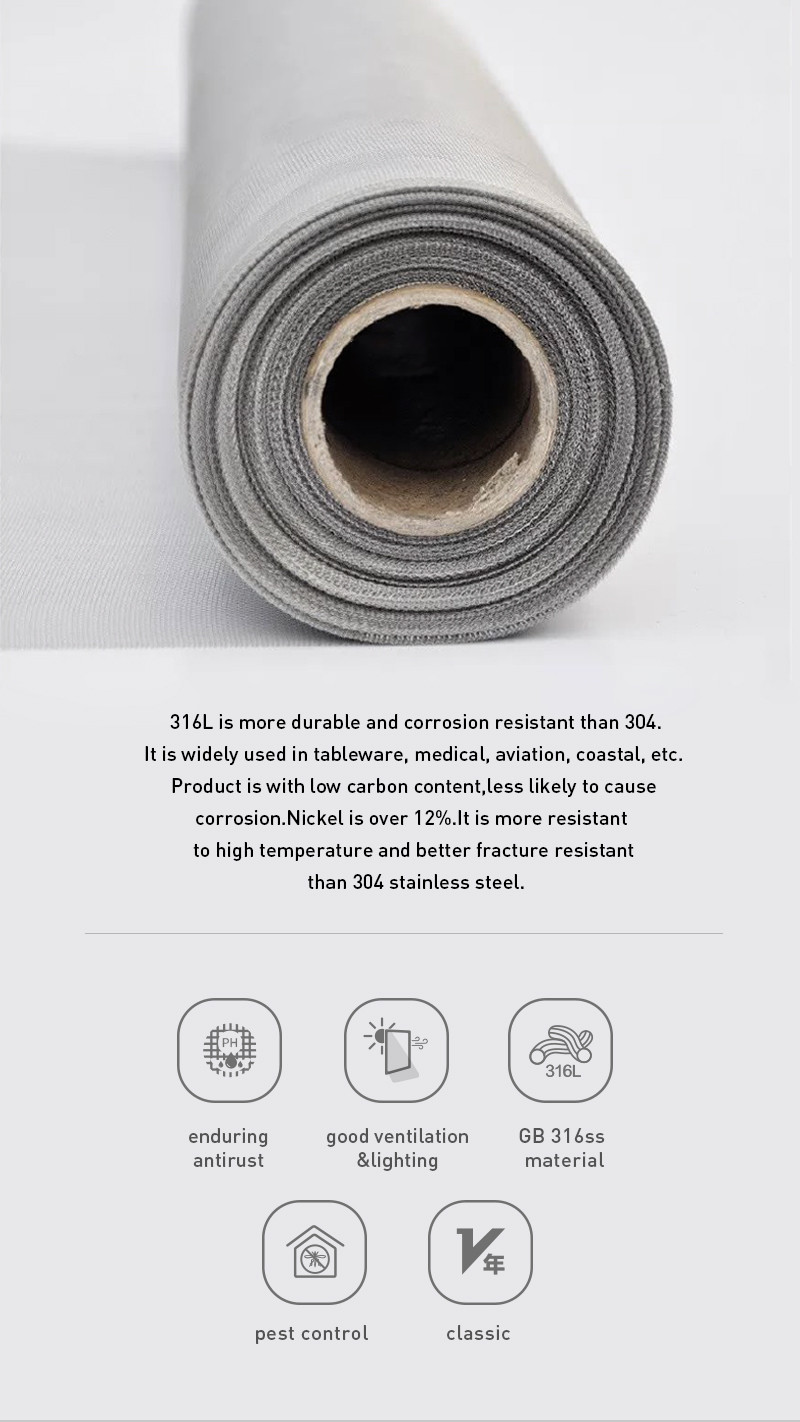

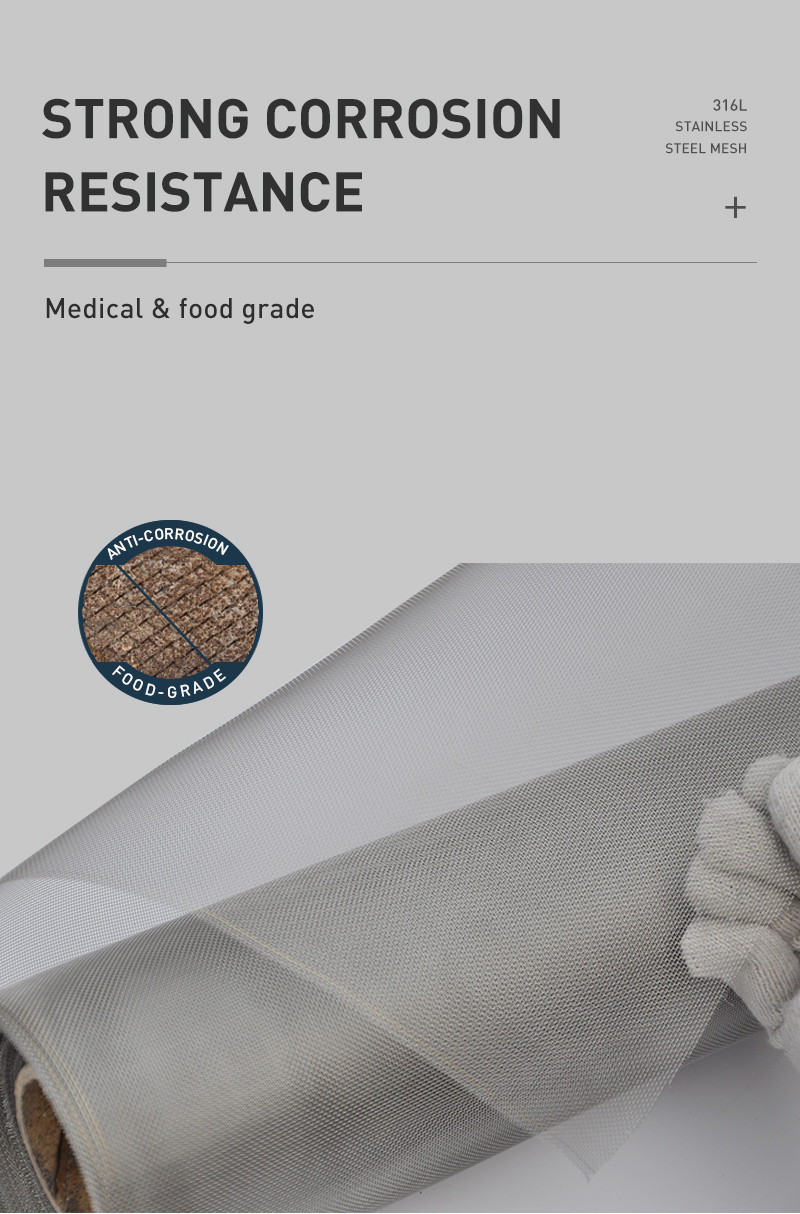

316L stainless steel window screen is designed for harsh and coastal environments where long-term corrosion resistance is critical. Made from 316L stainless steel wire with 18–22 mesh plain weave, it offers high tensile strength, good elongation and stable mechanical performance. The mesh effectively blocks insects and dust while maintaining airflow and natural light. With its natural stainless finish and multiple wire diameters, this 316L stainless steel insect screen is ideal for marine buildings, high-humidity areas, industrial filtration and premium window and door systems.

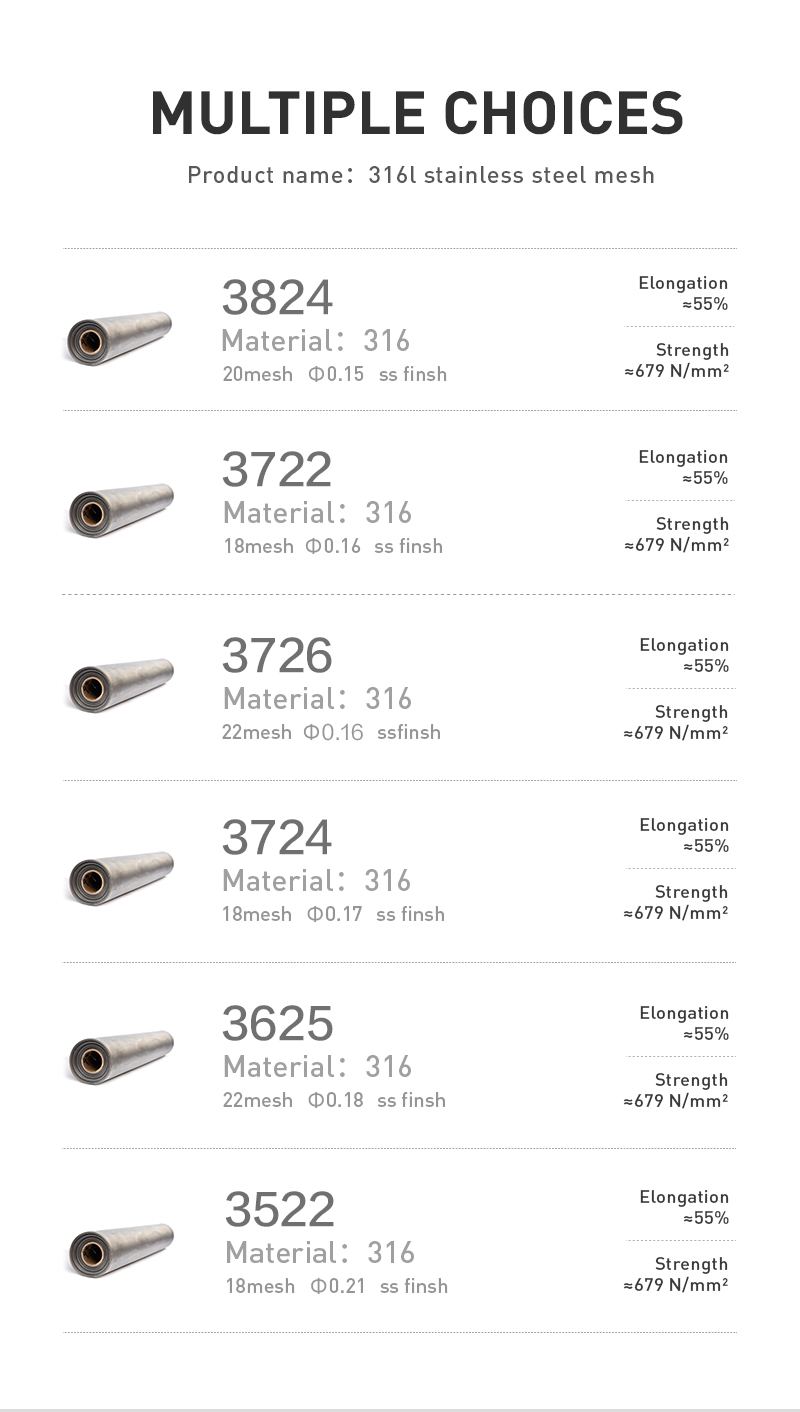

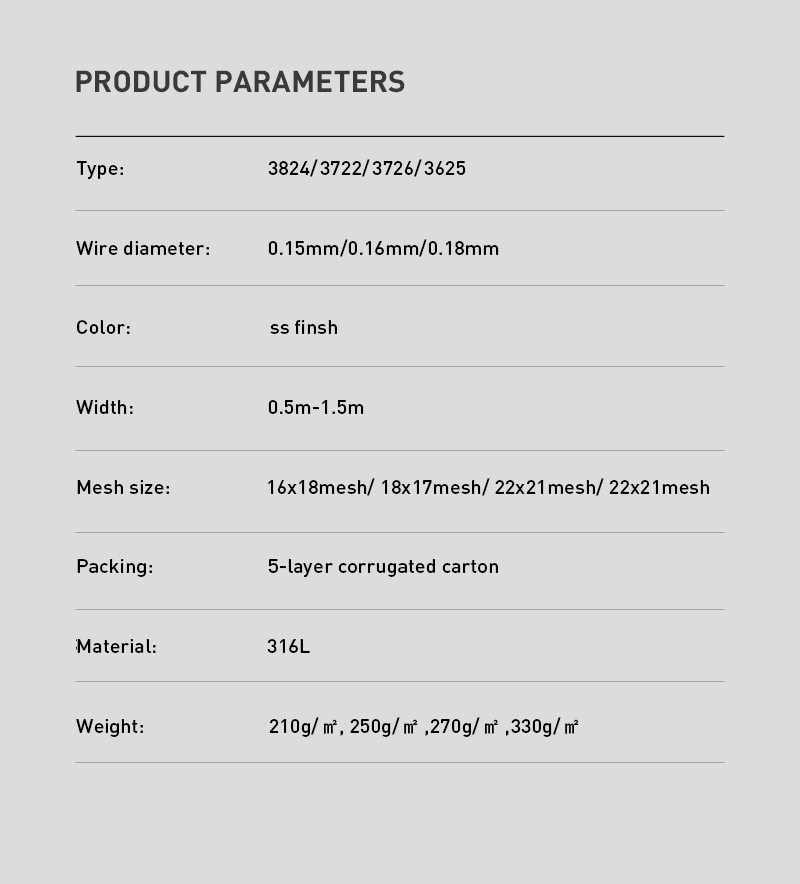

Model No.MaterialMesh Count (Warp × Weft)Wire Diameter (Warp / Weft)WeaveWeight (kg/m²)Elongation (%)CoatingTensile Strength (MPa)ColorPacking
3722316L Stainless Steel20 × 190.15 mm / 0.15 mmPlain weave0.2147–57None670–725NaturalCarton
3726316L Stainless Steel22 × 210.16 mm / 0.16 mmPlain weave0.2547–57None670–725NaturalCarton
3724316L Stainless Steel18 × 170.17 mm / 0.17 mmPlain weave0.2947–57None670–725NaturalCarton
3625316L Stainless Steel22 × 210.18 mm / 0.18 mmPlain weave0.3347–57None670–725NaturalCarton
3522316L Stainless Steel18 × 170.21 mm / 0.21 mmPlain weave0.4247–57None670–725NaturalCarton
